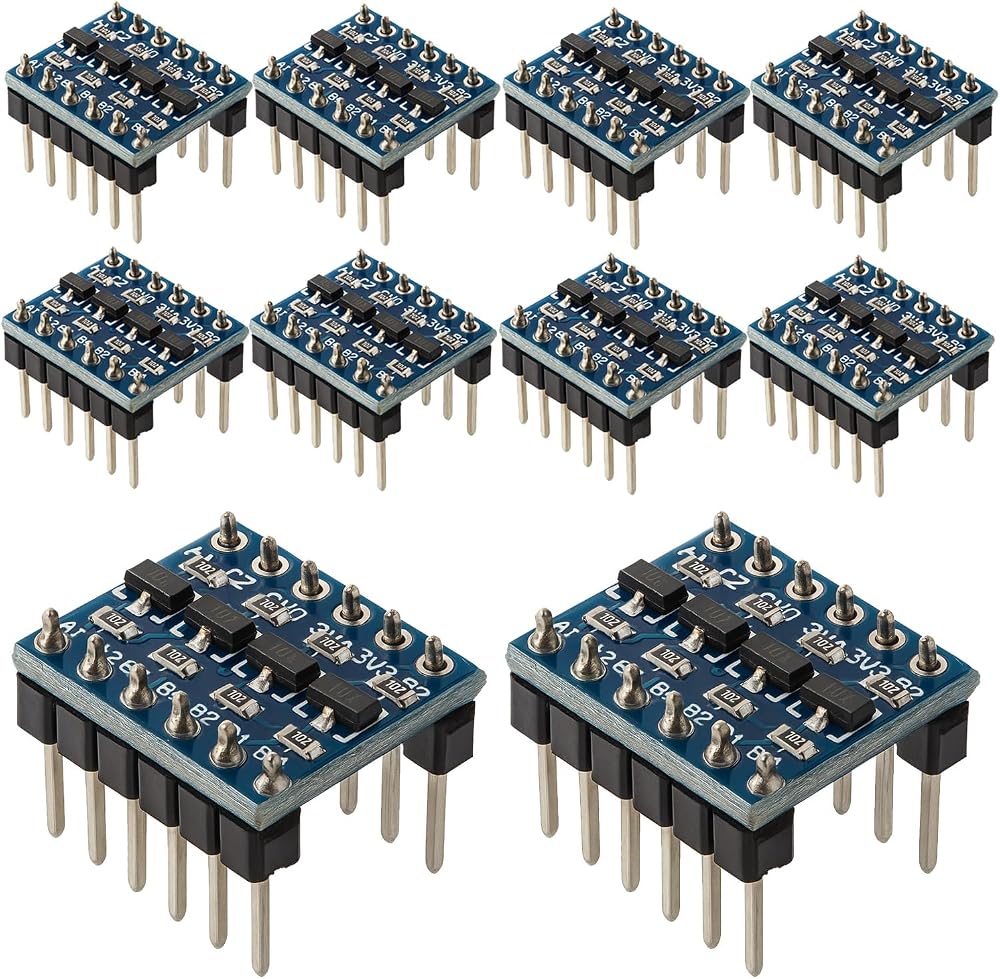

Gebildet 10Pcs 3.3V-5V 4 Channels Logic Level Converter Bi-Directional Shifter Module (Pack of 10) CYT1076

Product Overview

This pack includes 10 Gebildet 4-channel bi-directional logic level converter modules. These modules are designed to safely convert voltage levels between 3.3V and 5V systems, ensuring seamless communication between microcontrollers and peripherals operating at different logic levels.

Package Includes

• 10 × 3.3V-5V 4 Channels Logic Level Converter Bi-directional Shifter Module
• 20 × Single Row Pin Header (6 pins)

Key Features

• Bi-Directional Conversion: Safely shifts signals up or down between high and low logic voltages.
• 4 Channels: Supports conversion for four independent signal lines.
• Wide Voltage Compatibility: Works with 3.3V and 5V systems.
• Compact Design: Small footprint for easy integration into projects.
• Includes Headers: Comes with 6-pin single row pin headers for convenient connection.

Instructions

To use the module, connect the voltages and ground as follows:

• Connect the 5V system supply to the HV pin.
• Connect the 3.3V system supply to the LV pin.
• Connect the system Ground to the GND pin.

Each logic level converter provides two inputs and two outputs for each side, enabling 4-channel conversion between the high and low voltage sides.
